These parts have been manufactured over the last 20 years to help rebuild my own bikes. I made a small batch of these parts the remains of which I am now selling. If there is sufficient interest with any of the parts I will consider remaking. - Ian Bennett


Original Norton "Preperation for Racing"

Cam Technical Information

Gearbox Components   |   Engine Top End  |   Engine Bottom End  | Cambox Parts  | Pistons

Order Form Found at the bottom of the page

All Prices plus VAT & Postage see Order Form

Item No.

Gearbox Components

Manx Norton Gears
GB3

Scarborough Manx First gear 16 Teeth (For Main Shaft) Splined,
this meshes with original 25 tooth gear



£88 each

GB4

Special Manx Norton First Gear 26 teeth (For Lay Shaft)
This meshes with 15 tooth gear (Below) With Bush.

£80 each

GB5

Special Manx Norton First Gear 15 teeth (For Main Shaft) Splined,
this meshes with 26 tooth gear (above)

£88 each

GB1

Standard Manx Norton First Gear 25 Teeth (For Lay shaft) With Bush



CURRENTLY SOLD OUT!



£80 each







GB2

Standard Manx First Gear 17 Teeth (For main Shaft) Splined





CURRENTLY SOLD OUT!



£88 each





Engine Top End

Manx / International Norton Bevel housing bush
TE1



Top bevel housing bush Suit all Inter Norton’s and all Manx Norton’s up to 1957 (pre lighthouse)
The oil grooves are as 1949 on models, presumably Norton changed the oil groove design to improve the bearing life.



£39.00 Each

TE2



Manx Norton Hairpin Valve Spring retainers

To suit DOHC Manx Norton's

Hole 16mm Diameter





£20.00 Each



TE18

Manx Norton Hairpin Valve Spring Retainers

To suit SOHC Manx Norton's

Hole 17.5mm Diameter





£20.00 Each



TE19

Vertical Shaft Tube Top or Bottom Union Nut

Made exactly as original in chromed brass







£21.00 Each

TE20

Vertical Shaft Tube Top or Bottom Union Nut

Made exactly as original in chromed brass

With 0.050 " Oversize Thread

If the bevel housing thread is stripped you can re-cut the internal thead in a 4 jaw chuck 0.050" bigger and save the housing



£21.00 Each

TE21

Vertical Shaft Tube Top or Bottom Union Nut

Made as original in Aircraft quality Aluminium

These were made originally by Francis Beart as one of his light weight extra's, with these items he also supplied the Works for there own special racing bikes.

They were supplied with an aluminium tube which I have not made

£21.00 Each

TE22

Oldham Couplings

Available in a range of sizes:

1/8" Approximatley 3.2mm

5/32" Approximatley 4.0mm

3/16" Approximatley 4.8mm

7/32" Approximatley 5.5mm

1/4" Approximatley 6.35mm

Please state when ordering which size you wish to purchase

£20.00 Each



Bi - Metal Manx Norton Head


These are exact copies of original 1939 - 1949 Manx Norton head's

They are avaliable as 350's (71 mm) and 500's (79.6 mm)

These were manufactured with my friend Jim, as we both needed one

Although i say it myself they have come out very well, rediscovering old casting techniques.

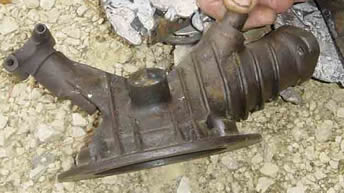

The inner bronze is an exact copy of the orginal, with fins (as picture below)







Available Soon!

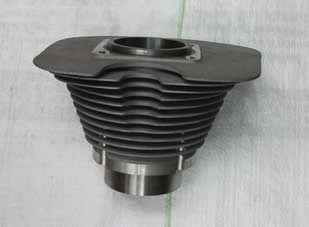

1939 – 1950 500 Manx Barrel

Complete with flanged cast iron liner and presently 78mm bore

I have made a batch of these for a customer so anybody interested please let me know





Norton Cambox Parts

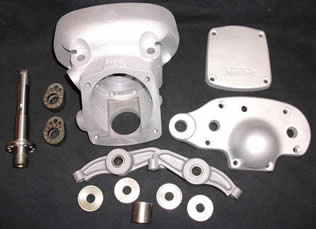

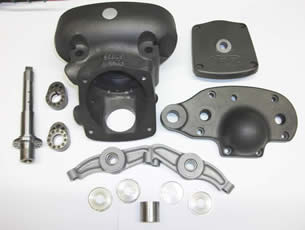

This is our cambox set

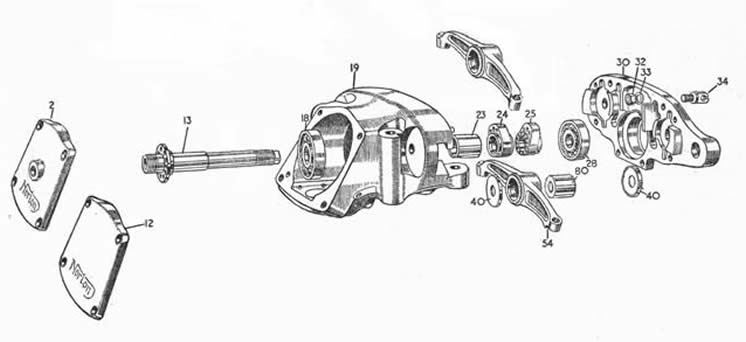

This illustration shows the parts you get when you purchase a set except for the bearings

The other parts (not shown)are avaliable from two or three other suppliers

All magnesium parts are made from the identical alloy used originally which was known as electron

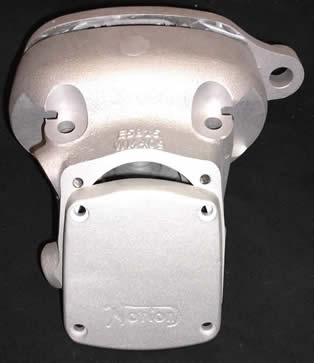

CB1

Magnesium Cambox Set

This is used on Manx and racing International Nortons

Please state when ordering if you require 350 or 500 manx cams

Please note: Not every part is here for a complete assembly see illustration above



£1500.00

Note: this is cheaper than buying individual parts

CB2

Aluminium Cambox Set

This is the most common type of international cambox it has splash fed lubrication'

Please state when ordering if you require 350 cams or 500 cams

Please note: Not every part is here for a complete assembly see illustration above



£1100.00 Each

Note: this is cheaper than buying individual parts

CB11

3 Main magnesium cambox castings





£940.00 Each





Note: this is cheaper than buying individual parts

CB12

3 Main Aluminium cambox castings





£550.00 Each





Note: this is cheaper than buying individual parts

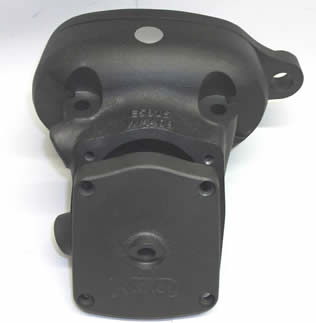

CB3

Magnesium Shell







£660.00 Each

CB4

Magnesium Back Cover



If purchased separately i cannot guarantee these will fit original cambox shells. But i do know that they will fit perfectly on three different camboxes which i have already tried.



£240.00 Each

CB5

Magnesium Centre Feed Front Cover



Used on Manx Nortons and racing International's



£80.00 Each

CB6

Aluminium Centre Feed Front Cover



£60.00 Each

CB7

Aluminium Shell





This is the most common type of International cambox and has spalsh fed lubrication'



£460.00 Each

CB8

Aluminium Back Cover



If purchased separately i cannot guarantee these will fit original cambox shells. But i do know that they will fit perfectly on three different camboxes which i have already tried.



£175.00 Each

CB9

Aluminium Front Cover



Used on splash fed international Nortons



£45.00 Each

CB13

Rocker Shaft 7/16 " Diameter

Fits CS1, International & Manx Norton's from mid 1933 onwards

Made from EN 36 Case Hardened, with soft Thread

£20.00 Each

CB15

7/16" Rocker Shaft Nut





£4.50 Each

CB14

Rocker Shaft 3/8 " Diameter

Fits CS1 & International Norton's from 1930 up till mid 1933

Made from EN 36 Case Hardened, with soft Thread

£20.00 Each

CB16

Cork Washers

Standard Thickness 2.00mm





£1.50 Each

International Norton Cams
TE3



500cc International Norton inlet cam

Marked up as 6212



£79.00 Each

TE4

500cc international norton exhaust cam

Marked up as 6213



£79.00 Each


TE18

1930 - 1939 CS1 & CJ Cams - Inlet

These cams have low lift as they are intended for use with long rockers

These long rockers are not 1:1 ratio as later rockers

These early long rockers give approximatley 10% more lift on the valve as on the cam

Marked up as 4400 (This is the original Norton number)



£79.00

TE19



1930 - 1939 CS1 & CJ Cams - Exhaust

These cams have low lift as they are intended for use with long rockers

These long rockers are not 1:1 ratio as later rockers

These early long rockers give approximatley 10% more lift on the valve as on the cam

Marked up as 4400 (This is the original Norton number)





£79.00





Manx Norton Cams
TE5

500cc SOHC Manx inlet cam

Marked up as 11587



£79.00 Each


TE6

500cc SOHC Manx exhaust cam

Marked up 11588



£79.00 Each


TE7

Special SOHC Manx inlet cam

We have used this cam with great succsess in our 600cc international (82 x 113)

this cam has 20 degrees extra crank shaft duration

this makes the power hang on another 500 rev's after maximum power, with no loss in low down power .

Refer to Technical Information

£79.00 Each

TE8

350cc SOHC Manx/ International inlet cam

Marked up 6466



£79.00 Each


TE9

350cc SOHC Manx/ International exhaust cam

Marked up 6389



£79.00 Each

TE10

500cc DOHC Long stroke Manx inlet or exhaust cam

Marked up M59



£79.00 Each


Manx / International Norton Rockers
TE11

Rocker 1933 - 1956

Remanufactured from forged EN 24T

£160.00 Each

(including bearings)







TE20

Rocker Pads



Made from case hardened EN36



£18.00 Each



TE16

Roller Rocker



 The Roller Rockers are now completed, fitted with the same roller assembly within G50’s which have been made for George Beale in the past, resulting in the elimination of all cam wear and increased performance.

These rockers now weigh the same as an unmodified original.

£190.00 Each





TE12

Needle roller conversion kit for original rockers.

Consists of needle roller bearings and spacer.

These bearings contain over 3 times as many rollers as the originals, so the load carrying ability is vastly improved. Also as the rollers are smaller diameter they revolve more using a greater proportion of the rocker shaft.

If you are using the original cupped washers the counter bore may have to be deepend slightly as the originals vary a lot - our new washers (below) will work perfect.

£21.00



TE13

Steel Cupped washers for Rockers

Original part number - A11/814



    £4.00 Each

Manx / International Norton cambox
TE14

Camshaft Slotted bush

Original Part number - A11/798



£12.50 Each

TE17

Original Camshaft

Exactly as orginal with 11 holes for original style bevels.



Centre feed Manx - £90.00

Non centre feed International - £75.00

TE15

Special Camshaft

This is a special to suit later course pitch bevels, the difference is the number of holes on the vernier, this one has 14 and not 11, as the original.

Norton changed this to give more accurate valve timing.

The big advantage of course bevels is that they are stronger and most improtantly  they are avaliable from several suppliers

Course bevels can be used in international nortons providing the hole for the bottom bevel housing is bored out bigger in the crank case and a sleeve is added to the bevel housing.



Centre feed Manx - £90.00

Non centre feed International - £75.00



Pistons

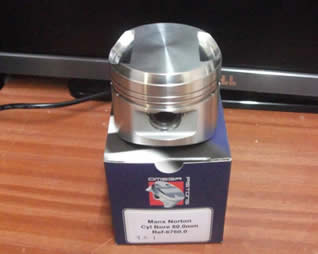

P1

Forged Norton 82mm Piston



I have had a batch of these pistons made by Omega Pistons who are based in my home town. They are for 600cc Norton’s and have a compression height of 1.25 inches.

This is a high compression 13.8:1 for methanol.

Works Norton's used 82mm pistons from 1938 - 1951 (with a 94.3mm stroke)



£170.00 Each



P2

Forged Norton 82mm Piston



Pistons made by Omega Pistons who are based in my home town. They are for 600cc Norton’s and have a compression height of 1.25 inches.

This is a high compression 9:25:1 for methanol.

Works Norton's used 82mm pistons from 1938 - 1951 (with a 94.3mm stroke)



£170.00 Each









P3







Forged Norton 82mm Piston for Original 500's

These pistons have been speciaily modified to fit original 500 heads and  barrels which will give a capacity of 530cc's, this is the maximum an original 500 barrel can be bored to (both iron and aluminium).

They give squish clearance on the sides as per matchless G50 and have a flat top for added performance.

Avaliable in 9:5 & 14:1

Works Norton's used 82mm pistons from 1938 - 1951 (with a 94.3mm stroke)



£185.00 Each

Engine Bottom End

Manx / International Norton Flywheels
BE1

500 Inter Fly Wheels 1932 - 1956 Original style machined from solid

£480 Pair

CURRENTLY SOLD OUT!

BE9



500 Inter Fly Wheels 1932 - 1956 machined from forged EN 24T, shafts in one peice with wheels

                                                             £750 Pair

BE10



500 Manx Fly Wheels (100mm stroke) 1935 - 1953 machined from forged EN 24T, shafts in one peice with wheels

                                                          £750 Pair



BE12

Special's Made to Order

600 International / Manx Flywheels

Made to Order

Or any other Stroke you require, 94.3 stroke flywheels available on request for our 82mm pistons (as works 500 Norton's).

Please Enquire for price & Delivery









Awaiting Photograph

BE2

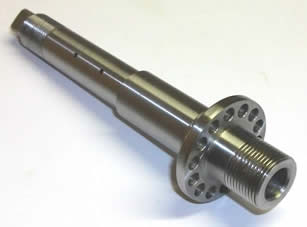

350/500 Norton International Drive side main shaft 1932 - 1956

£180 Each

BE3



350/500 Norton International Timing side main shaft 1932 - 1956

£190 Each

BE4



350/500 Norton Manx Drive side main shaft 1935 - 1950

£180 Each

BE9



350/500 Norton Manx Drive side main shaft 1951 - 1953

£180 Each







Awaiting photograph

BE5



350/500 Norton Manx Timing side main shaft 1935 - 1953

£190 Each

BE11

Main Shaft Nuts

Will fit all above shafts

£15.00 Each

BE13

22 Tooth Half Time Gear



Made from Case Hardened EN36



£58.00 Each

BE6



Bottom bevel housing bush Suit all Inter Norton’s and all Manx Norton’s up to 1957
(pre lighthouse)



£39.00 Each

FOR BIG END BEARINGS VISIT BIG END BEARINGS SECTION
Manx / International Norton Conrods

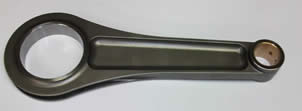

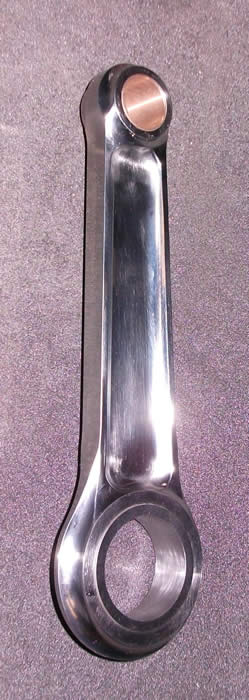

BE7

Titanium Conrod

Long Stroke conrod 7.5 inch centres
500cc Manx 1946 – 1953
500cc Inter 1932 - 1956
350cc Manx 1946 – 1947
350cc Inter to full racing spec. 1932 - 1939

Titanium conrod being machined in house on one of our cnc machines.


To reduce the roller speed these conrods have a smaller bore at the big end ( 2 ") and the outside of the little end has been enlarged.

As the conrod has a 2" bore they use crankpin item number "A7" or "A8" (found in big end bearing section)


Please Note!

Some clubs have banned the use of titanium conrods. Speed way is one such sport to have done this because they are deemed to give an unfair advantage.

£560 Each

CURRENTLY SOLD OUT!

total weight: 337 grams

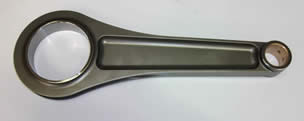

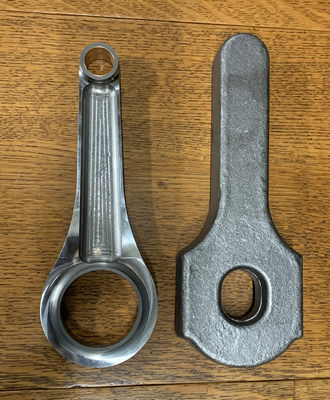

BE8



Long Stroke conrod 7.5 inch centers

the design is a copy of the orginal
500cc Manx 1946 – 1953
500cc Inter 1932 - 1956
350cc Manx 1946 – 1947
350cc Inter to full racing spec. 1932 - 1939
They are made from forged 4340 steel and shotpeened.

£ 240 Each

Total weight: 597 grams



BE9

350 Inter Conrod 7.0 Inch Centers

This will also fit 350 CJ's 1930 - 1939

This is for 350 International Norton's

It is made to a Manx design with two webs around the big end

This is a direct replacement with the original

They are made from forged 4340 steel and shotpeened.

£240 Each







BE10



600 Manx/ Inter Conrod 8.0 Inch Centers





This will fit all long stroke 600 Inter & Manx Nortons (82 x 113)

They are made from forged 4340 steel and shotpeened.



£240 Each









BE11

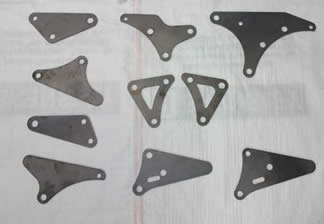

Engine Plates



Made out of 4mm thick Steel



Most Types Available:



£12.00 Each



I am interested in purchasing or swaping any Manx or International parts.
